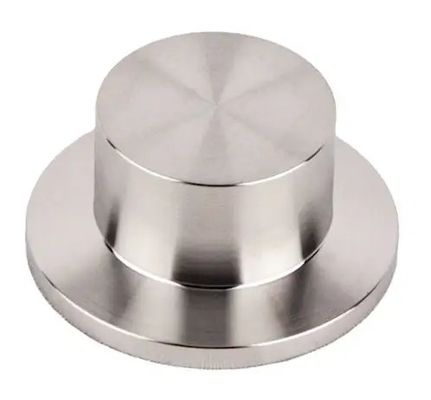

KF16 KF25 KF40 Blank Stubs Flange Vacuum flange

KF16 KF25 KF40 Blank Stubs Flange Vacuum flange

MOQ:	50

Thông tin chi tiết

Mô tả sản phẩm

Thông tin chi tiết

Place of Origin:

China

Packaging Details:

cartons

Làm nổi bật:

KF25 Blank Stubs Flange

KF16 Blank Stubs Flange

KF40 Blank Stubs Flange

Mô tả sản phẩm

Key attributes

Industry-specific attributes

Technics

Forged

Shape

Equal

Other attributes

Place of Origin

Wenzhou, China

Brand Name

Bovinx

Model Number

FLW

Connection

Flange

Size

KF10~KF50

material

Stainless Steel

Applications

ISO-KF fittings can be used in a wide variety of applications including:

• Roughing and foreline plumbing

• Small systems

• Systems requiring frequent cleaning or modification

• Research and teaching laboratories ISO-KF components are primarily designed for use at subatmospheric pressure. Because of the large number of elastomer seals used.

Installation

The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2).

Material and Size

• Flanges, Blanks, Fittings: Stainless Steel 304 or 316L
• Clamps: Aluminum or Stainless Steel 304
• Oring: Viton

Vacuum range

Elastomer seal: >= 1 x 10-8 Torr

Temperature range
Viton: -50°C to 200°C
